dash Williams
Meet the dashmoto® dash 3 Williams. Meticulously built from Formula 1 obsession. For racers, enthusiasts, and anyone who refuses ordinary.Extended warranty available.

Racing architecture
Built around a carbon fiber monocoque frame — a structural innovation borrowed directly from Formula 1. Stiffer, stronger, and engineered to handle more than the road throws at it.
dashmoto® × Williams brings F1 precision to every ride — faster, farther, and engineered to a standard the road rarely sees. Long range battery, charger, velcro strap and user manual included.

Engineered to perform
500 watts of magnesium-driven power. 20 mph top speed with instant high-torque acceleration. Responsive handling that makes every surface feel like it was made for this ride.

Long range
The long-range 491Wh Samsung cell battery covers up to 25 miles on a single charge — fully replenished in 3.5 hours. Built for riders who don’t turn back early.

Compact freedom
Designed to fit snugly into small spaces and most car trunks, you can count on hassle-free transportation wherever you go.
Lean mobility
At just 28.7 lbs without the seat, the Williams edition moves with you — light enough to lift, built to feel anything but.
Dynamic suitability
Tailored to fit a broad range of riders from 4’9” to 6’6” tall and up to 375 lbs, look forward to a uniquely comfortable riding experience.
Step 1
Step 2Cruising comfort

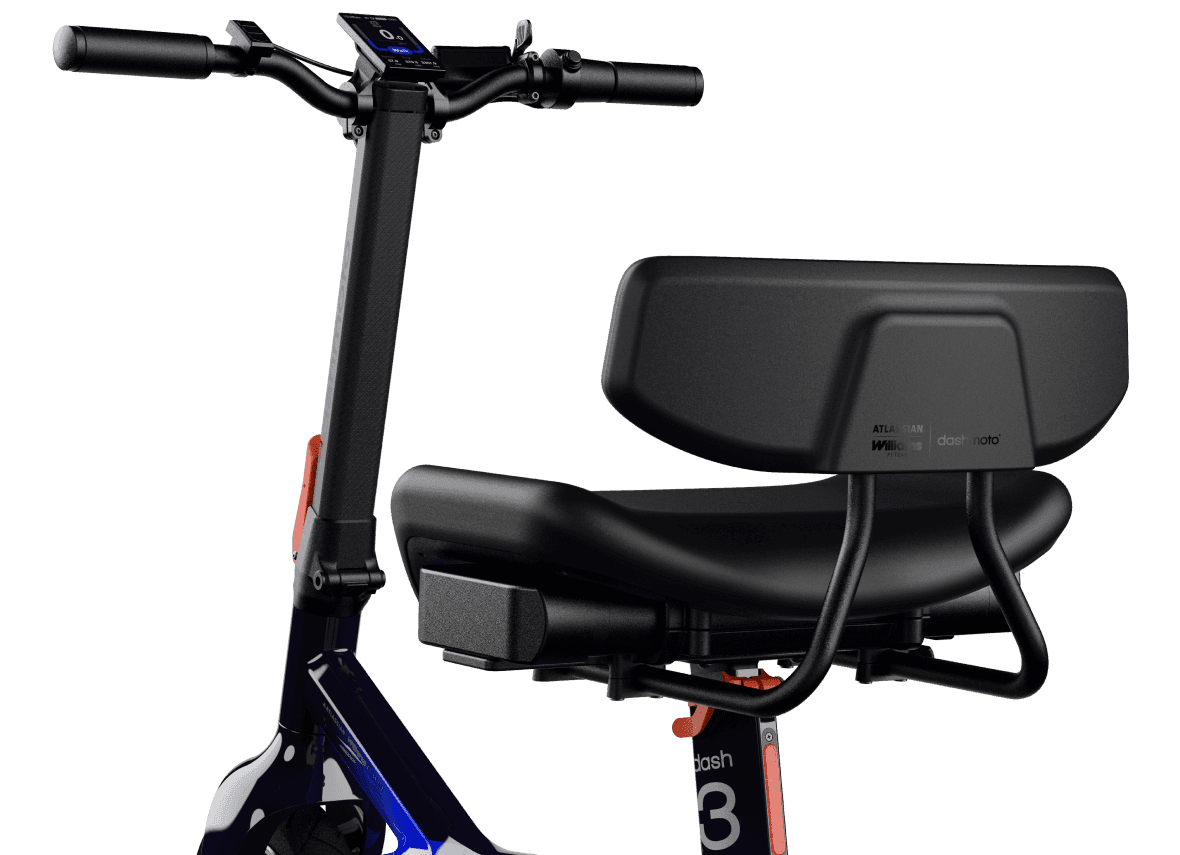

The ergonomically designed seat lets riders of up to 375 lbs journey comfortably over short and long distances, across a variety of terrains.

Precision handling

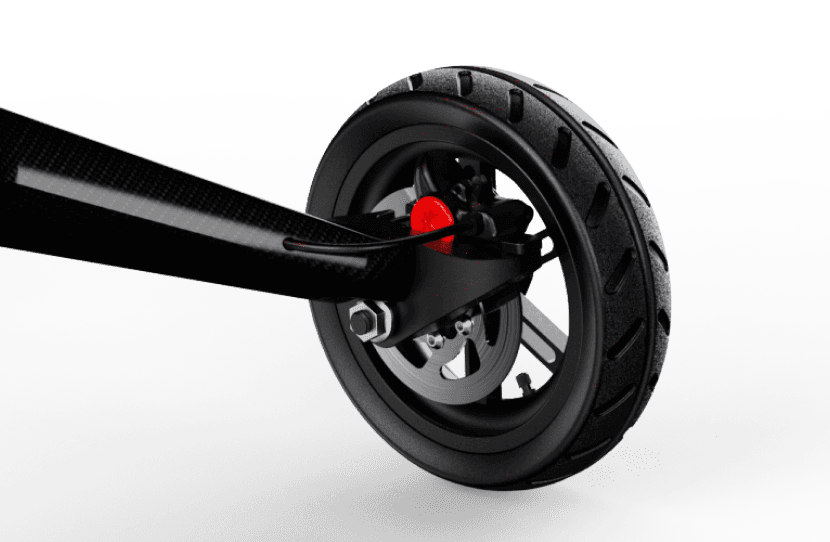

Bespoke 10-inch alloy wheels with high-grip tubeless self-sealing tires absorb the road and hold the line. Three-wheel balance and hill-hold control, built to tolerances that don’t leave room for doubt.


Safely stable
High performance hydraulic regenerative brakes and three-wheel stability deliver confident stopping power — and feed energy back into every ride.

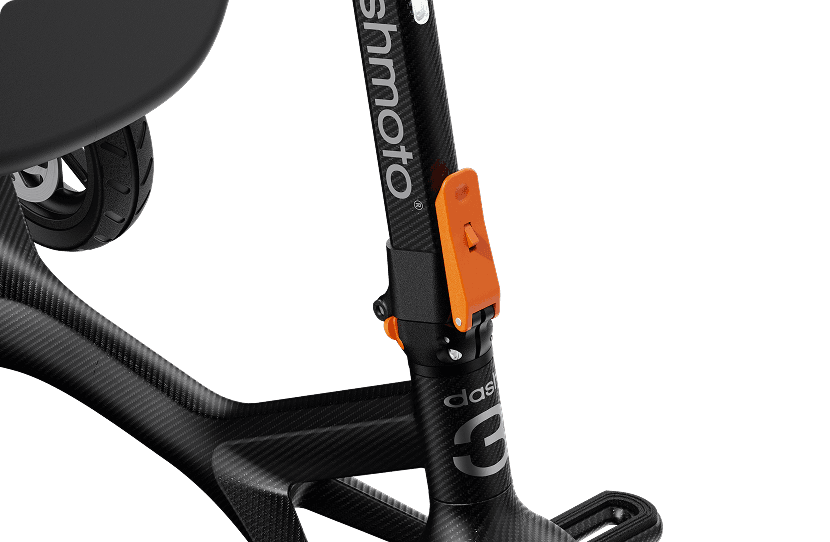

Easy folding
Effortless one-click folding equips you for any situation — with swift adaption for storage, transportation, or comfy mobile seating.

Specifications
46.5 lbs
Total weight25 mi
Max range20 mph
Top speed500 w
Motor power4
Ride modes< 375 lbs
Weight capacity| Motor: | Ultra light magnesium 500 watt hub motor |
|---|---|
| Regenerative brake: | KERS F1-inspired regenerative braking |
| Top speed: | 20 mph* |
| Ride modes: | Walk (4 mph) Cruise (8 mph) Sport (20 mph)* *Not available in UK Edition |
| Cruise control (dynamic) | |
| Torque: | 40NM / 29.5 ft/lb |
| Incline: | 12 degrees |
| Active hill hold: | Automatic braking prevents rollback on inclines |
| Frame: | Carbon fiber monocoque (T700 and T800) |
| Brake: | High performance dual hydraulic rear disc brakes |
| Rear wheels: | Bespoke 10” alloy, high-grip tubeless tires |
| Turning radius: | 2.5 feet; < 40 square feet |
| Battery Cells: | Samsung |
|---|---|
| Type: | Lithium-ion |
| Voltage: | 48V |
| Capacity: | 477 Wh long-range — exceeds FAA air travel battery limits |
| Charging time: | 3.5 hours |
| Max range: | 25 miles |
| Battery location: | Under the dashmoto® seat |
| Charger input: | 100-240 V |
| Upright (Ready to Ride): | H 37" L 44" W 24" Weight: 46.5 lbs |
|---|---|
| Folded (With Seat On): | H 27" L 44" W 24" Weight: 46.5 lbs |
| Folded (With Seat Removed): | H 20.0" L 44" W 24" Weight: 28.7 lbs |
| Rider weight: | < 375 lbs |
| One-click folding | |
|---|---|
| Patent-pending unibody frame | |
| Indoor & outdoor use | |
| Colors: | Special Williams F1 livery (blue) |
| Removable | |
|---|---|
| Height: | Adjustable backrest |
| Material: | High density polyurethane foam |
| Backing: | Fiberglass |
| Distance from the top of the seat to the ground: | 19.5 inches |
| Ergonomically designed for comfort | |
| Accommodates rider height range of 4 feet 11 inches to 6 feet 6 inches |
Getting around with dashmoto®

F1 heritage
Nearly 50 years of Williams motorsport obsession. 16 world championships of engineering instinct — now in your hands.

Easily adaptable
dashmoto®’s front bar folds neatly inward for comfortable seating at a table or café, blending mobility and ease in one simple motion.

Made to move
Enjoy smooth, stable handling with dashmoto®’s low center of gravity and four adaptive drive modes — Sport, Cruise, Walk, and Reverse.
Test ride dash 3 Williams
To experience the incredible engineering of dash 3 Williams, choose a location below or join our US Tour. You'll also find us trackside at Formula 1 events throughout 2026.
